BSWP PET 黏貼式編織擴充管
  • 應用
    由PET單絲編織而成，粘貼式的設計可以適用於各種各樣的捆綁尺寸和不規格的形狀，並可以很方便在雙端封閉的場合安裝和卸除。
    Made from PET monofilament yarns. Hook and loop design most apply for variety of bundle diameters
    and irregular shapes that enables easy and quick on and off installation and most suitable for
    double-ended closed cable, wire and hose assemblies.
  • 特性
    抗紫外線
    對大部分的化學和溶解性物質有抵抗性
    粘貼部分具有很好的耐用性
    輕，柔軟方便施工
    優異的抗磨擦性能
    UV light resistant
    Not affected by most chemicals and solvents
    The hook and loop keep high cycle life
    Light weight and flexible for easy installation
    Excellent abrasion resistance
  • 操作溫度範圍
    操作溫度 : -50˚C~125˚C
    Operating temperature : -50℃ ~ 125℃
  • 認證 / 規範

    UL file no. E304566( for FR series)



    Patent No.:ZL200520120466.1


  • 顏色
    標準顏色：黑 (其他規格尺寸可訂製)
    Standard color ：black (Other colors ,special size, cut pieces are available on request.)

產品型號

Part No.

尺寸Size

張開寬度

Opening expansion width
Inch(mm)(min.)(W)

Hook & Loop Width

黏扣帶寬度(mm)(H)

包裝Feet (M)/R

mm(毫米)

Inch(英吋)

阻燃材質 Flame retardant material

BSWP-FR1

12.7

1/2"

2.16” (55)

13

65ft (25m)

BSWP-FR2

19.1

3/4"

2.75” (70)

13

65ft (25m)

BSWP-FR3

31.8

1 1/4"

4.72” (120)

20

65ft (25m)

Non-flame retardant 非阻燃材質

BSWP-1

12.7

1/2"

2.16” (55)

13

65ft (25m)

BSWP-2

19.1

3/4"

2.75” (70)

13

65ft (25m)

BSWP-3

31.8

1 1/4"

4.72” (120)

20

65ft (25m)

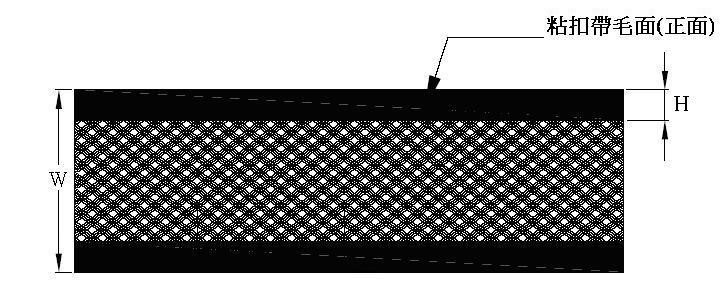

黏扣帶毛面(Velcro on the two edges with hook and loop)
