應用具有良好的防劃傷和抗彎曲能力，用於開關設備和變電站的滙流排的絕緣保護。我們提供的連續的套管可以使我們的使用更加方便和經濟。
Provides high resistance to tracking and arching and used to enhance the insulation properties of bus bar in switchgear and substation. The continuous length of supplied products makes it to be used more conveniently and economically. -
特性收縮率:2.5:1
柔軟、耐腐蝕
優異的化學抵抗性和絕緣性能
Shrinkable Ratio:2.5:1
Flexible material and corrosion resistance
Excellent chemical resistance and insulation performance
-
操作溫度範圍操作溫度 : -45˚C~105˚C
最低收縮溫度 : 100˚C
最低完全收縮溫度 : 135˚C
Operating temperature : -45℃ ~ 105℃
Minimum shrink temperature : 100℃
Minimum fully recovery temperature : 135℃
-
認證 / 規範
IEC60060-1(2010)
-
顏色標準顏色：紅 (銅牌寬度會依廠家設計不同有所變更，建議尺寸僅供參考)
Standard color ： red (Width dimension of busbar is depending on factory design..)
|
Part Number 產品型號 |
Nominal SIZE(mm) 尺寸(毫米) |
As supplied 收縮前(mm) |
After recovered 收縮後(mm) |
Applicable busbar dimension 適用匯流排尺寸 (mm) |
Standard Length 標準長度 (Meter / 米) |
||
|
I.D. (min) 內徑(D) |
I.D. (max) 內徑(D) |
W.T. 壁厚(W) |
L+T (min) (max) 方形(最小)(最大) |
R (min) (max) 圓形(最小)(最大) |
|||
|
HB2-020 |
20 |
20±0.8 |
10 |
2.0±0.2 |
13~28 |
11~18 |
25 |
|
HB2-030 |
30 |
30±0.8 |
13 |
2.2±0.2 |
22~38 |
14.5~25 |
25 |
|
HB2-040 |
40 |
40±1 |
15 |
2.2±0.2 |
25~40 |
17~37 |
25 |
|
HB2-050 |
50 |
50±2 |
20 |
2.5±0.2 |
36~65 |
22~43 |
20 |
|
HB2-065 |
65 |
65±3 |
25 |
3.0±0.2 |
39~62 |
27~56 |
20 |
|
HB2-080 |
80 |
80±3 |
30 |
3.0±0.3 |
55~95 |
33~70 |
20 |
|
HB2-100 |
100 |
100±4 |
40 |
3.0±0.3 |
70~130 |
44~86 |
20 |
|
HB2-120 |
120 |
120±4 |
50 |
3.0±0.3 |
90~165 |
55~105 |
20 |
|
HB2-150 |
150 |
150±4 |
60 |
3.5±0.3 |
95~138 |
70~135 |
20 |
|
HB2-180 |
180 |
180±5 |
75 |
3.5±0.3 |
125~235 |
80~170 |
15 |
|
HB2-210 |
210 |
210±5 |
90 |
3.5±0.3 |
200~275 |
110~200 |
15 |
Applications/應用

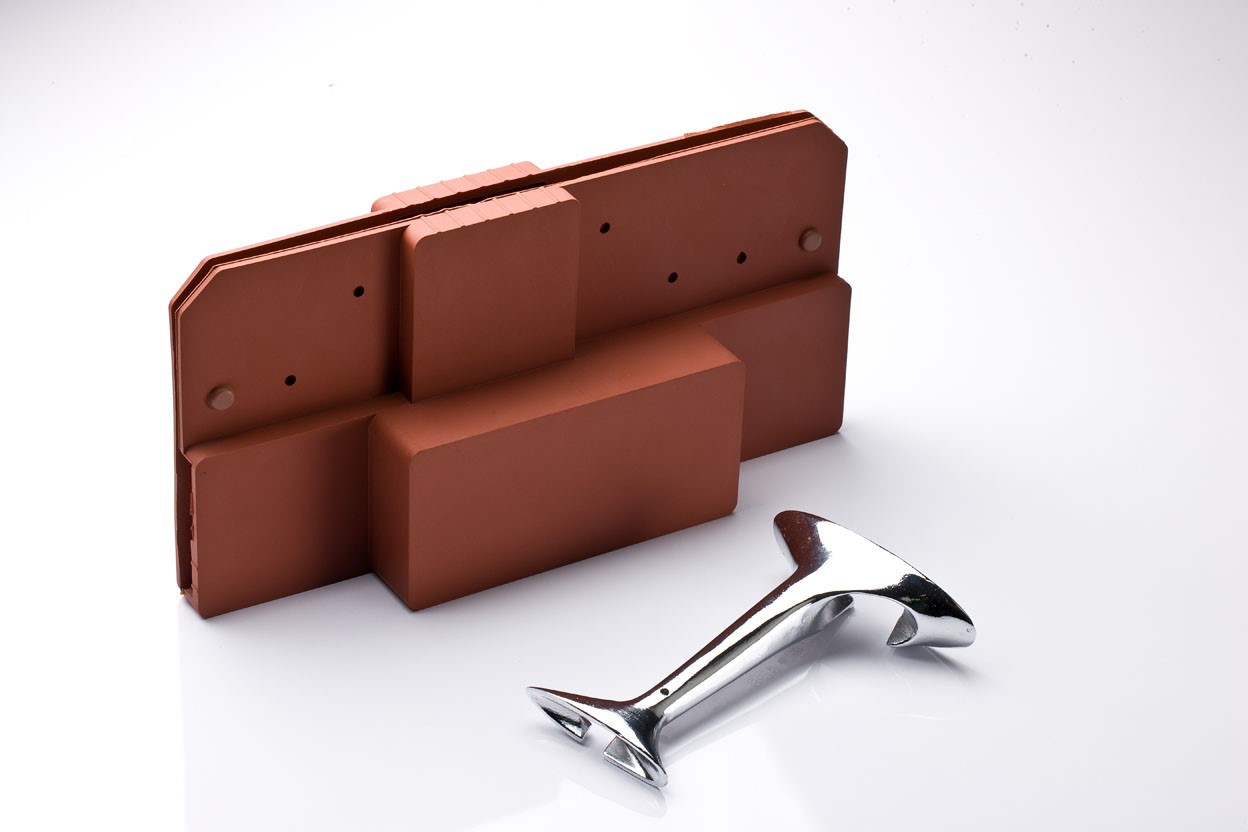

Apply to busbar splice for insulation and protection. Suitable used for L type and I type busbar splice.
應用於銅牌接續處的絕緣保護，適合L型及I型的接續處理
Characteristic/特性
Rubber material
Excellently Abrasion and corrosion resistance
Flexible and high temperature resistance
橡膠材質，耐磨及耐腐蝕性能佳
柔軟耐高溫
