產品介紹
-
應用專為導線連接,焊錫熱縮保護,防水一次完成設計的產品。
One piece design, it consists of transparent heat shrinkable sleeve and fluxed solder. Provides insulation, inspection, strain relief and water proof. Makes installation easily and lower the installed cost. Color hot-melt glue on two ends of heat shrinkable tube, it’s very convenience to use the exact wire dimension. -
特性收縮率2:1
含熱熔膠具防水功能,
熱熔膠顏色標示適用尺寸
焊錫環設計容易施工
Shrinkage ratio 2：1
Waterproof for wiring splices
Transparent sleeve provides precise inspection
Easy control soldering process
-
操作溫度範圍工作溫度：-55℃~105℃
開始收縮溫度：60℃
完全收縮溫度：110℃
焊錫完全熔解溫度115℃
Operating Temp. -55℃ ~ 105℃
Minimum Shrink Temp. 60℃
Minimum Fully Recover Temp.100℃
Starting temperature of solder melt : 115˚C
-
認證 / 規範
-
顏色標準顏色：紅、藍、黃、白
Standard color ：Red, Blue, Yellow and White
|
Part Number 產品型號 |
Product Dimensions(mm) |

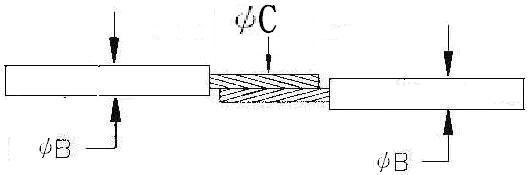

Wire Dimensions(mm) |
Cable Size 電線 |
Standard color 標準顏色 |
|||
|
A(min) |
L(max) |
B(min) |
B(max) C(max) |
C(min) |
A.W.G(㎜2) |
||
|
GAST-B01 |
1.7 |
26 |
1.0 |
1.7 |
0.76 |
26-24(0.25-0.34) |
White |
|
GAST-B02 |
2.7 |
40 |
1.4 |
2.7 |
1.2 |
22-18(0.5-1.0) |
Red |
|
GAST-B03 |
4.5 |
40 |
2.3 |
4.5 |
2.0 |
16-14(1.5-2.5) |
Blue |
|
GAST-B04 |
6.0 |
40 |
3.7 |
6.0 |
3.4 |
12-10(4.0-6.0) |
Yellow |
|
GAST-B11 |
11.5 |
40 |
5.8 |
11.5 |
5.5 |
10-6(6.0-14.0) |
Blue |
|
GAST-B13 |
13.0 |
42 |
6.8 |
13.0 |
6.5 |
8-4(8.0-22.0) |
White |

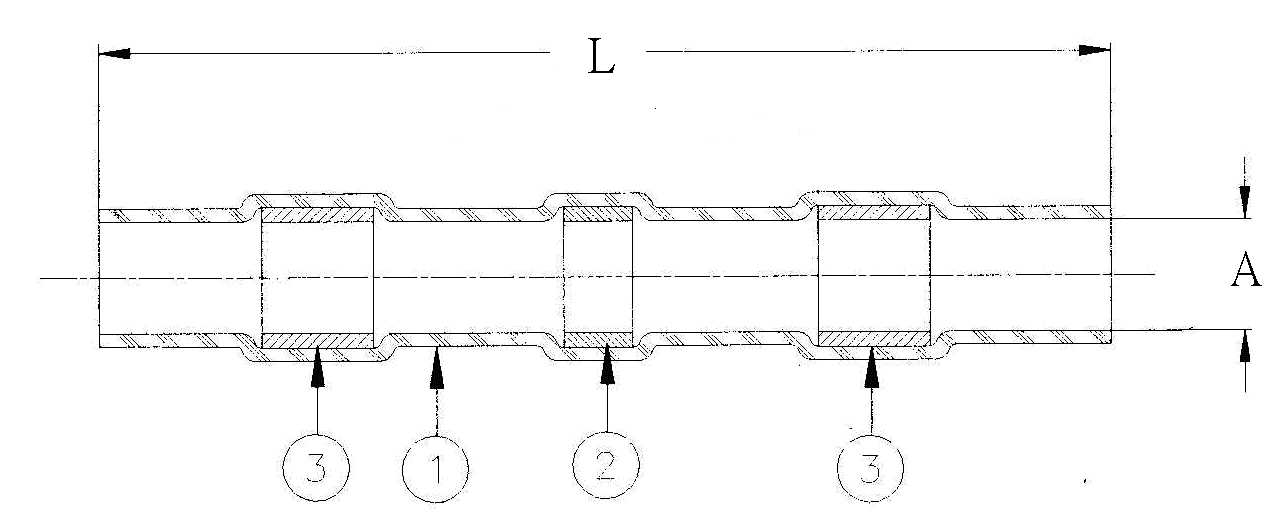

1.熱收縮套管
2.低溫銲錫環
3.防水熱熔膠
1.Heat shrinkable tubing
2.Low temperature solder sleeve
3.Waterproof hot melt adhesive
