產品介紹

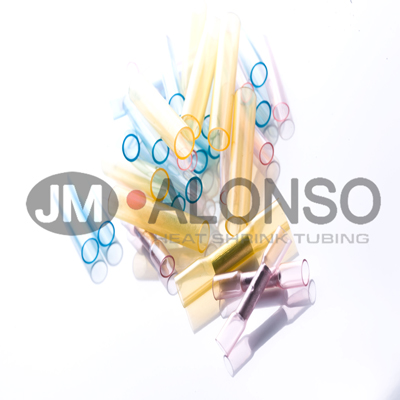

APO高彈性防水端子用熱縮套管
  • 應用
    APO 是由改性聚烯烴生産而成的熱收縮套管塗膠而成,黏接力對PVC,PE,金屬黏接力強用於保護連接,防水,抗腐蝕。 可以在粗糙的環境中加強固定和防震動,具有很好的絕緣保護電子連接器的功能。
    Made by modified polyolefin, with superior sealing for protecting connectors from water and corrosion. Inner adhesive bonds to PVC, PE and metals. for protecting connection from water proof and corrosion resistance. It reinforces firming and against vibration in rugged environments, which excellent insulates and protects electronic connections
  • 特性
    收縮率:3:1
    耐磨抗腐蝕
    防潮,防水
    高透明性、彈性
    Shrinkage ratio 3:1
    Abrasion and corrosion resistance
    Water proof and moisture resistance
    Highly translucence and elasticity
  • 操作溫度範圍
    操作溫度: -40℃ ~ 105℃
    最低完全收縮溫度: ≧100℃
    Operating temperature : -40℃ ~ 105℃
    Minimum Fully Recover Temp. ≧100℃
  • 認證 / 規範
  • 顏色
    標準顏色:紅、藍、黃 (其他顏色,其他尺寸,裁切可依客戶需求另行訂製)
    Standard color :Red, blue and yellow (Other colors ,special size, cut pieces are available on request.)

Part Number

產品型號

As supplied 收縮前(mm)

As recovery 收縮後(mm)

Standard Length

(Meter)

標準長度(米)

I.D. 內徑

W.T.(min) 壁厚

I.D.(max)

內徑

W.T.(min)

壁厚

APO48

4.8±0.3

0.50±0.15

1.5

1.20±0.15

100

APO58

5.8±0.3

0.60±0.15

1.8

1.35±0.15

100

APO68

6.8±0.3

0.65±0.15

2.2

1.45±0.15

100

 1.22米以下的長度,可依照客戶需求指定。
